Rotronic提供高端实验室设备,最多4通道可用于台式或插入式水活性的测量,适用于奶酪,肉,烟草,建筑,动物饲料,烘焙食品,造纸,药品,园艺,农业等行业的水活性测量。
验证软件
简便、直观、适用于实验室级别的应用。通过PC运行HW4软件,可以提供带有图表和数据记录功能的远程监控系统
特点
• 四通道台式显示表,用于测量水活性、温度和相对湿度
• AW Quick功能,快速读取测量结果(典型测量时间4-5分钟)
• 声音报警提示测量完成
• 最多存2,000组测量数据(包括湿度、温度、日期和时间)
Rotronic提供高端实验室设备,最多4通道可用于台式或插入式水活性的测量,适用于奶酪,肉,烟草,建筑,动物饲料,烘焙食品,造纸,药品,园艺,农业等行业的水活性测量。
验证软件
简便、直观、适用于实验室级别的应用。通过PC运行HW4软件,可以提供带有图表和数据记录功能的远程监控系统
特点
• 四通道台式显示表,用于测量水活性、温度和相对湿度
• AW Quick功能,快速读取测量结果(典型测量时间4-5分钟)
• 声音报警提示测量完成
• 最多存2,000组测量数据(包括湿度、温度、日期和时间)
特点
4 通道台式显示装置,用于测量水活性,湿度和温度
AW Quick 功能,测量快速 (通常 4-5 分钟)
功能增强升级
4 个USB 接口 (例如用于鼠标和键盘)
远程访问(通过PC或平板电脑)
每次测量后自动生成测量报告

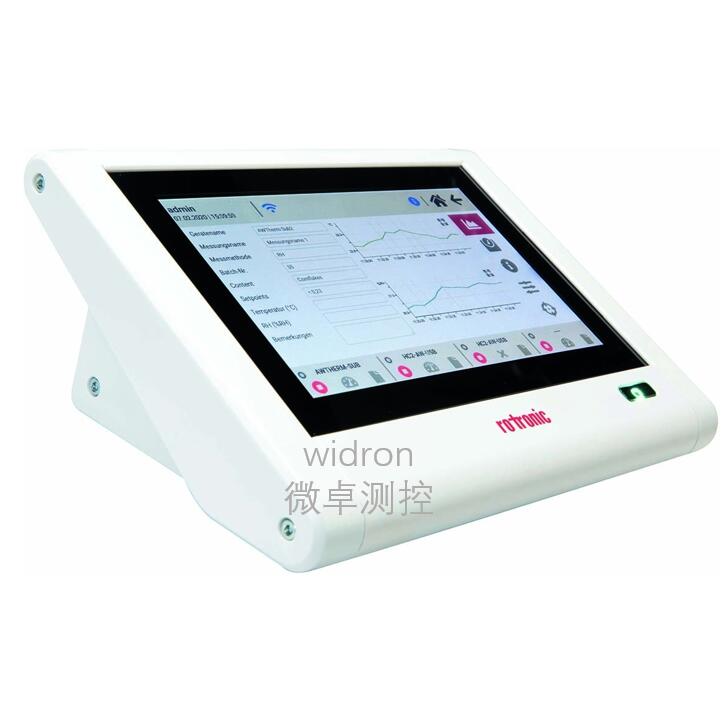

Rotronic HygroLab 是一款用于水活性测量的创新型高端实验室分析仪,具有4个测量探头输入。同步或异步测量医药产品、烟草、咖啡、食品等中的水活性,配有久经考验的AW Quick 快速测量功能。
创新型独立的用户界面
HygroLab 拥有一个现代化的界面,可以清晰、简单地测量水活性,通过高质量的触摸屏操作。水活性分析仪还可以通过PC或平板电脑连接到网络进行远程控制。因此,可以随时随地可以随时从任何地方下载测量报告。
精度@ 23 ±5 °C | ± 0.008 aw / 0.8 %rh / ±0.1 K |
---|---|
尺寸 | 215 ×146 ×79 mm |
显示 | 7” LCD 电容式触摸屏 |
重量 | 1.02 kg (2.25 lbs) |
工作范围 | 0-40 °C (32-104 °F) / 0-80 %RH |
电源 | 12 VDC 2.0A 24W 最大 (AC 适配器) |
计算 | 无湿度计算 |
测量间隔 | 15 s |
显示参数 | Aw, % RH, °C, °F |
探头连接 | 4 x HC2 探头台 (HC2A-S 或 HC2-AW) |
开机时间 | 30 s |
声音报警 (蜂鸣) | 无 |
计时 | 实时计时,每次测量提供时间戳 |
HW4 兼容性 | 无 |
趋势显示 | 是 |
内存 | 16 GB |
Aw-quick 模式 | 是 |
软件更新 | 通过网络直接更新 |
电源键 | 按键 (带 RGB 红色指示灯) |
协议 | 日期,时间,AW / RH, °C / °F, AW 设置点,序列号等 |
外壳 | 铝,ABS,不锈钢 |
IP 防护等级 | IP30 |
CE / EMC 符合性 | 2014/30/EU |
交货清单 | Hygrolab, 电源适配器,笔,说明书,USB WiFi stick (备选) |
Rotronic提供高端实验室设备,最多4通道可用于台式或插入式水活性的测量,适用于奶酪,肉,烟草,建筑,动物饲料,烘焙食品,造纸,药品,园艺,农业等行业的水活性测量。
验证软件
简便、直观、适用于实验室级别的应用。通过PC运行HW4软件,可以提供带有图表和数据记录功能的远程监控系统
特点
四通道台式显示表,用于测量水活性、温度和相对湿度
AW Quick功能,快速读取测量结果(典型测量时间4-5分钟)
声音报警提示测量完成
最多存2,000组测量数据(包括湿度、温度、日期和时间)
The Rotronic HygroLab is an innovative high-end laboratory analyzer for water activity measurements with up to four measurement probe inputs. Simultaneous or asynchronous measurement with the tried-and-tested AW Quick measuring function for pharmaceutical products, tobacco, coffee, food and many more.
Innovative and stand-alone user interface
The HygroLab has a modern interface for clear and simple measurement of water activity. It is operated using a high-quality touch screen. The water activity meter can also be connected to the internet for remote control via PC or tablet. The measurements can thus be observed and the measurement reports downloaded from anywhere at any time.
Features
4-channel benchtop display unit for measurement of water activity, relative humidity and temperature
AW Quick function for fast measurement results (typically 4-5 minutes)
Updates with functional enhancements
4 USB ports (e.g. for mouse and keyboard)
Remote access (by PC or tablet)
Automatically generated measurement report after every measurement
Benefits
High accuracy of ±0.008 Aw at 23 °C
Performs up to 4 measurements simultaneously or asynchronously
Quick and easy operation
Extended operation with mouse and keyboard possible
Measurement of temperature, water activity and relative humidity
Personal setting of a set-point for fast and simple output of results
Fast measurement results (typically 4-5 minutes) using the AW Quick function
Automatic generation of measurement reports after every measurement, can be sent by e-mail
Remote control via PC or tablet with the possibility to download measurement reports
Regular software updates with enhanced functions can be downloaded directly from the HygroLab
FDA conformity and the possibility to calibrate probes (coming soon via software update)
ACCURACY AT 23 ±5 °C | ± 0.008 aw / 0.8 %rh / ±0.1 K |
DIMENSIONS | 215 ×146 ×79 mm |
DISPLAY | 7” LCD capacitive touch screen |
WEIGHT | 1.02 kg (2.25 lbs) |
OPERATING RANGE | 0…40 °C (32…104 °F) / 0…80 %RH |
POWER SUPPLY | 12 VDC 2.0A 24W Max (AC adapter) |
CALCULATIONS | No psychrometric calculations available |
MEASUREMENT INTERVAL | 15 s |
PARAMETERS SHOWN | Aw, % RH, °C, °F |
PROBE CONNECTIONS | 4 x HC2 station probe (HC2A-S or HC2-AW) |
START-UP TIME | 30 s |
ACOUSTICAL ALARM (BEEPER) | No |
CLOCK | Real time clock provides a time stamp for every measurement |
HW4 COMPATIBLE | No |
TREND INDICATOR | Yes |
STORAGE CAPACITY | 16 GB |
AW-QUICK MODE | Yes |
SOFTWARE UPDATE | Direct with the HygroLab over the internet |
POWER BUTTON | Push button (with RGB light indicator) |
PROTOCOLS | Date, time, AW / RH, °C / °F, AW Setpoint, Serial No., etc. |
HOUSING | Aluminum, ABS, stainless steel |
IP PROTECTION RATING | IP30 |
CE / EMC CONFORM | 2014/30/EU |
DELIVERY PACKAGE | Hygrolab, Power Adapter, Pen, Short instruction manual, USB WiFi stick (optional) |
在23 ±5 °C时精度 | ± 0.008 aw / 0.8 %rh / ±0.1°C |
尺寸 | 215 ×146 ×79 mm |
显示 | 7” LCD capacitive touch screen |
重量 | 1.02 kg (2.25 lbs) |
工作范围 | 0…40 °C (32…104 °F) / 0…80 %RH |
供电 | 12 VDC 2.0A 24W Max (AC adapter) |
计算值 | No psychrometric calculations available |
测量间隔 | 15 s |
参数显示 | Aw, % RH, °C, °F |
探头连接通道数 | 4 x HC2 station probe (HC2A-S or HC2-AW) |
启动时间 | 30 s |
声音报警器(蜂鸣器) | 无 |
时钟 | 实时时钟,为每次测量提供时间戳 |
HW4兼容性 | No |
趋势指标 | 有 |
存储容量 | 16 GB |
快速模式 | 有 |
SOFTWARE UPDATE | Direct with the HygroLab over the internet |
POWER BUTTON | Push button (with RGB light indicator) |
PROTOCOLS | Date, time, AW / RH, °C / °F, AW Setpoint, Serial No., etc. |
外壳材料 | Aluminum, ABS, stainless steel |
IP防护等级 | IP30 |
CE/EMC认证 | 2014/30/EU |
DELIVERY PACKAGE | Hygrolab, Power Adapter, Pen, Short instruction manual, USB WiFi stick (optional) |
HygroLab Datasheet (778.1 KB) 2020/06/02
HygroLab short instruction manual (2.36 MB) 2020/05/28
HygroLab CE Declaration (176.36 KB) 2020/05/28
HygroLab C1 - CE declaration (163.57 KB) 2016/5/13
HygroLab C1 - Firmware v1.0 (64.49 KB) 2017/1/5
HygroLab C1 - Manual v1.11 (1.11 MB) 2016/3/31
HygroLab C1 - Short instruction manual (652.41 KB) 2016/3/31
Water activity - Brochure (2.5 MB) 2019/10/28
